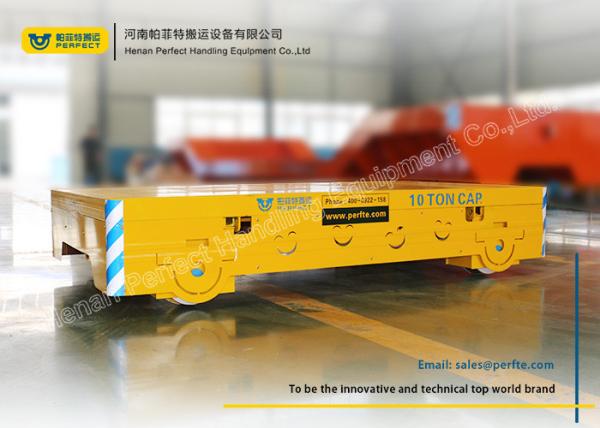

10Ton Flatbed Rail Cars Material Handling Transfer Cart For Steel Carriage
Introduction of Flatbed Rail Cars
1. This flatbed rail cars don't have power.
2. Usually, it need driven by manual or other power machine.
3. Its apperance could be customized according client's using situation.
4. It runs on railway, if you need it to run on cement floor, we can allso manufacture.
5. Our load capacity is no less than 120% and we can also customize the table size, safety device and other devices for you according to your demands
6. It’s a cost saving and right choice for you!
Process Technology
1. CNC Cutting
2. Preliminary Assembling
3. Welding
4. Post weld treatment
5. Spray Primer
6. Assembling
7. Paint finish
8. Debugging
Parameters of Motorized Handling Trailer
| Model | BP-5T | BP-10T | BP-15T | BP20T | BP-30T | BP-45T | BP-60T |
| Rated Load(T) | 5 | 10 | 15 | 20 | 30 | 45 | 60 |
| Table Size(mm) | 2500*1500 | 3000*2000 | 3200*2000 | 4000*2000 | 5000*2200 | 6000*2400 | 6000*2500 |
| Height (mm) | 600 | 700 | 750 | 750 | 800 | 850 | 950 |
| Wheel Quantity | 4 | 8 | 8 | 8 | 12 | 12 | 12 |
| On cement floor | Tire Specification | 305*165 | 559*254 | 559*356 | 22*9-10 | 22*9-10 | 22*10-16 | 22*14-16 |
| Tire Material | Polyurethane Solid Wheel, Press-on Solid Tire |
| On rail | Rail Inner Gauge(mm) | 1435mm |
| Wheel material | LD steel wheel, Angel box wheel |
| Frame Material | Q235 | Q235 | Q235 | Q235 | Q345 | Q345 | Q345 |
| Color | Customized |
| Speed(km/h) | 0-20 | 0-20 | 0-20 | 0-15 | 0-15 | 0-15 | 0-10 |
Package & Transportation
The body of the cart is packed with tarp, the small parts will be packed with wooden cases. According the table size and quantity, the cart would be carefully fixed and transported by FCL, LCL, Bulk Transportation, Open Top Container, Flat Rack Container and so on.
Other Products
We could provide you with rail flat cars, railway guided transfer carts, factory transport equipment, battery powered trolleys, intelligent self-propelled trolleys, die carts, industrial flat trailers, tilters and lifting platforms that operate in many industrial fields: metallurgy, manufacture, oil and gas, die shops, shipyards, chemical plant, automotive etc.Your satisfaction is what we are striving for!
