15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo

Name: 15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo
Brand: 15t Cable Reel Powered Transfer Cart
Price: 3000 USD

Wholesale 15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo from china suppliers

Brand Name : 15t Cable Reel Powered Transfer Cart

Model Number : 15t Cable Reel Powered Transfer Cart

Certification : CE ISO SGS

Place of Origin : Henan, China (Mainland)

MOQ : 1 set

Price : USD 3000~7800 set

Supply Ability : 100 set month

Delivery Time : 20 work days after received balance payment

Packaging Details : trap and wooden case

Product Name : 15t Cable Reel Powered Transfer Cart

Application : Industrial Filed

Color : Customized

Capacity : Customized

Running speed : 0-20m/min

after-sales Service Provided : Engineers available to service machinery

Contact Now

15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo

Description

BTL series electric transporter dolly permit the 380V alternating current get in the electric control system directly and then drive the motor to make it start, stop, move forward and move backward. The cable lies in the middle of the two rails and the working voltage is safe 36V. It can be used in high temperature and explosion proof environment. It's usually used for short distance transportation.

Features of Ferry Transfer Cart

---- Low noise It causes low noise level.
---- Maximum safety Offers guarantee of maximum safety for operators and for the material handled. We really care about the safety of everyone involved in the job.
---- Easy for operation These transfer carts are easy to drive, so as soon as you get it you will be able to use it to transport your loads. We will support you to make the best out of your heavy load transporter.
---- Easy to implement into manufacturing process Operates on standard floors; Do not require complex or permanent installation
---- Suitable for All Kinds of Weight The battery powered trolley is superb for handling both small and extremely huge loads for its modular fabrication and its high payloads: up to 300 ton for each trolley.

Site map for customer useSite map for customer useail Trailer Rail Trail

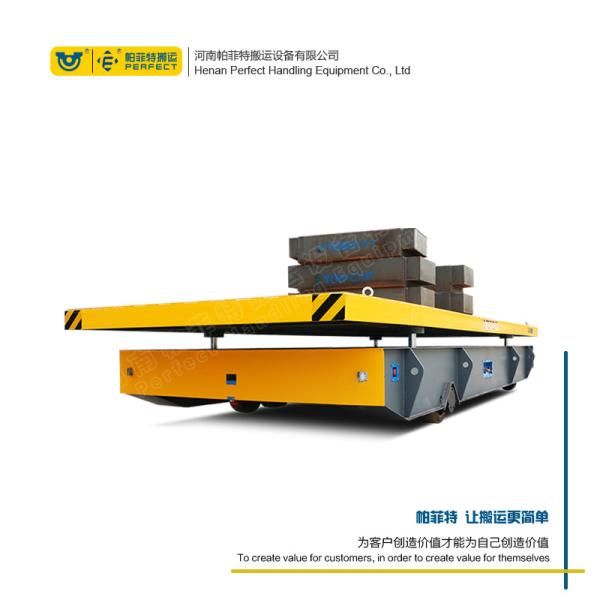

Detailed Image

15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo

Components

15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo

Technical Parameters

Model		BTL-2t	BTL-20t	BTL-50t	BTL-100t	BTL-150t
Rated Load(t)		2	20	50	100	150
Table Size(mm)	Length(L)	2000	4000	5500	6500	10000
	Width(W)	1500	2200	2500	2800	3000
	Heigth(H)	500	600	700	1000	1200
Wheel Base(mm)		1200	2800	4200	4900	7000
Rail Inner Gauge(mm)		1200	1435	1435	2000	2000
Wheel Diameter(mm)		270	350	500	600	600
Wheel Quantity		4	4	4	4	8
Ground Clearance(mm)		50	50	50	75	75
Running Speed(min)		0-25	0-20	0-20	0-20	0-18
Motor Power(kw)		0.8	2.5	5.5	11	15
Running Distance(m)		25	30	50	50	50
Max Wheel Load(KN)		14.4	77.7	174	343.8	265.2
Reference Weight(t)		2.5	5.6	7.8	14.1	26.2
Recommended Rail Model		P15	P24	P43	QU100	QU100

Production Process of Ferry Transfer Cart

CNC Cutting
Transport the steel plate from raw material warehouse to CNC cutting workshop for cutting. After the cutting, the workers will do some simple processing such as chip moving and setting out.
Preliminary Assembling
Put the cut steel plate together according to the design drawing
Welding
Weld the steel plate with automatic welding machine after the preliminary assembling
Post weld treatment
Test the welding section after the welding, polish and burring. Post weld treatment to eliminate welding stress
Spray Primer
Transport the structure part after processing to painting booth for spraying primer. The main component of the primer is zinc rich epoxy antirust paint. The primer is to two layers
Assembling
Assemble the structure parts after spraying primer with wheels, motors and gear box, etc.
Paint finish
Transport the assembled cart to painting booth, inspect the integrity of primer. After that paint the finish
Debugging
Debugging the cart after painting the finish with electric control system, after the debugging, the cart will test without load. And after the no load test, the cart will be tested with load. After the inspection, the cart will be transported to storage area.

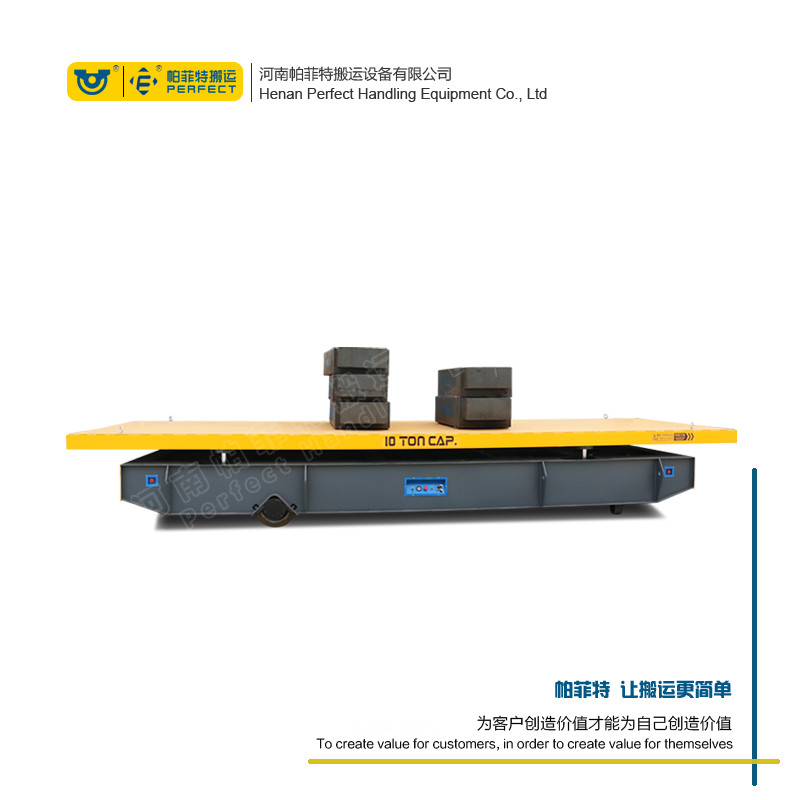

15 Ton Cable Heavy Load Electric Ferry Transfer Cart Transporting Cargo Images
